Mechanized Track Welding Machines

At Bug-O Systems, our track welding machines use a motorized welding carriage to guide the torch along a rail. Designed for precise, controlled movement, our mechanized track welding systems improve consistency and productivity across industrial applications.

From shipbuilding to tank fabrication and metalworking, we offer reliable equipment with travel and control options to meet different welding requirements.

How Track Welding Systems Work

Track welding systems use a guided travel mechanism to move the welding torch along a defined path. Instead of relying entirely on manual torch movement, the equipment controls travel to support consistent speed and positioning throughout the weld.

A typical system brings together three components:

Track or rail

Establishes the travel path, which may be straight, curved, or configured for a specific workpiece.

Motorized carriage

Moves along the rail at a controlled speed while supporting the welding equipment.

Welding torch

Performs the weld as the carriage travels along the designated path.

The track welding carriage and rail configuration determine how the equipment moves across the workpiece. A rail-guided welding machine can be configured for different applications, depending on the selected drive unit, rail type, and compatible accessories.

Some systems also provide oscillation, automatic height control, or programmable welding parameters. These capabilities vary by model and configuration, allowing operators to select equipment based on their specific welding requirements.

DC-IV

Bug-O DC-IV track cutting and welding carriage

The DC IV is a dual-speed range, positive rack & pinion drive, ready for mounting, welding, or cutting attachments and accessories. It consists of a DC IV Drive unit mounted on a 12″ (305 mm) Carriage.

Features

  • Wing Nut locks clutch
  • Cam Clutch engages and disengages the drive
  • Power Cord
  • Power Indicator Light
  • Forward-Off-Reverse Switch
  • Infinitely Variable Speed Control
  • Circuit Breaker
  • Factory Installed Pinion provides a high torque, low-speed range
  • Alternate Pinion bypasses the bull gear to obtain a low-torque, high-speed range

GO-FER® IV

Bug-O GOF-4100 Gofer track system kit

The GO-FER® IV is a portable, versatile, and robust tractor designed for all your cutting and welding needs. It’s like having three units in one! When used for cutting, you can utilize either oxy-fuel or plasma torches.

It can also carry a Plasma torch for gouging. The GO-FER® IV can be used in all positions.

Features

  • A drive motor to suit all applications with speeds from 2.5 to 100 ipm (63.5-2540 mm/min)
  • Dynamic braking of motor prevents drift in all positions
  • Bright digital pre-settable travel speed meter for actual ipm
  • Two independent built-in contactors for dual torch applications
  • Large industrial sealed rocker switches (welding glove-friendly)
  • Quick–Action Gas manifold, twin-hose assembly, and cable anchor

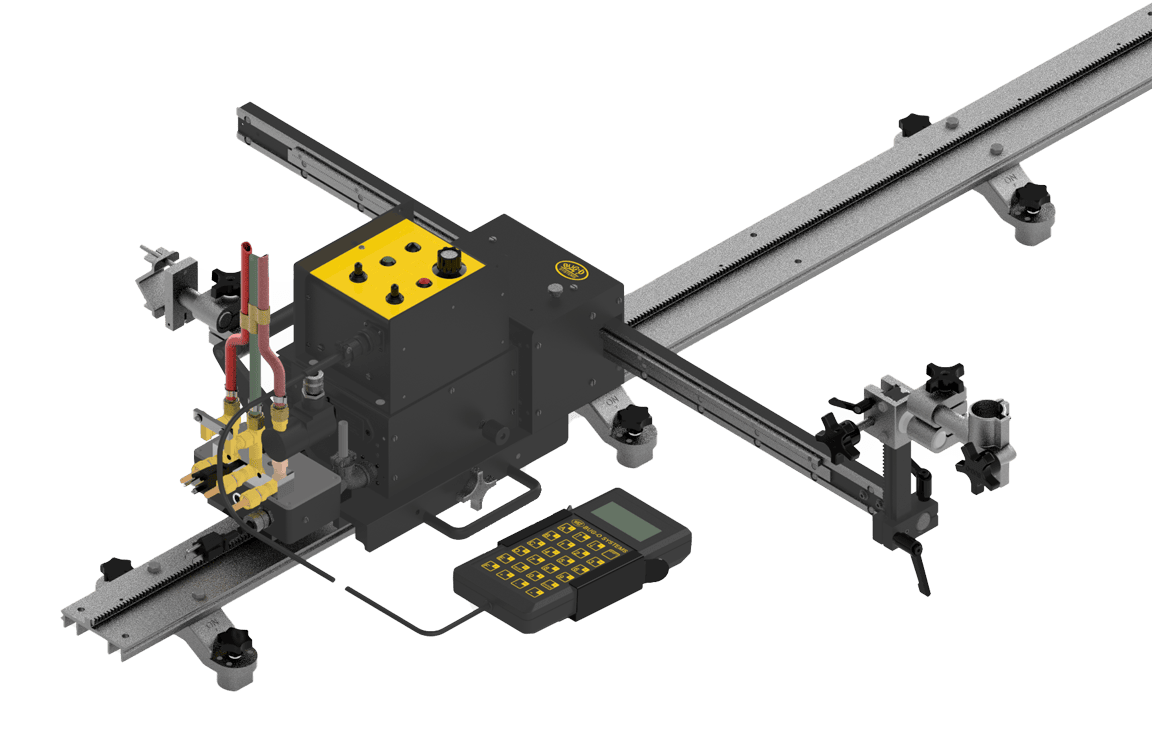

Modular Drive System

Bug-O MDS-4550 modular drive system on rail

The Modular Drive System is the only product in the industry that allows the user to configure one machine for multiple applications. The Master Drive Unit accepts several interchangeable control modules for programmable shape cutting, straight line cutting/welding, stitch welding, programmable stitch welding, arc gouging, linear weaving, and pendulum weaving.

Features

  • High torque, low inertia motor
  • Dedicated fail-safe brake
  • Motor overload protection
  • Closed-loop speed control
  • Closed-loop position control

Piper-Plus

Bug-O PWS-5200 welding carriage on PSR-2000 rail

The PIPER-PLUS is a self-contained, digitally controlled, mechanized pipe welding system, producing high deposition rates with excellent weld quality to reduce pipe welding costs. Featuring increased duty cycle and arc-on time, this track welding machine provides significant productivity improvements.

All welding parameters, including voltage, wire feed speed, current, travel, and oscillation, are programmable and digitally controlled with the Piper-Plus.

Features

  • Closed-loop feedback of travel, height control, and all motion parameters
  • Distinctive on-board current monitoring and adjustments
  • Programmed for exact multi-parameter output
  • Supervisor-set operating limits for every adjustable parameter
  • Pre-programming of an infinite number of procedures and weld passes
  • Air-cooled or optional water-cooled welding guns are available
  • Automatic Height Control provides constant tip-to-work distance control. Total travel of 4″ (100 mm)
  • Made in USA

Universal Bug-O-Matic

Bug-O BUG-5700 track welding carriage

A Flexible, Compact Drive and Oscillator Combination for Welding in All Positions! The Universal Bug-O-Matic (BUG-5700, BUG-5702, and BUG-5704) is one of our versatile all-position welding systems, designed for applications requiring controlled oscillation and precise torch movement. Its compact design and compatibility with multiple rail configurations make it suitable for straight, curved, vertical, and overhead welding applications.

By changing the carriage, the system can operate on rigid, semi-flex, hi-flex, or complete ring rails. Its opening mechanism allows installation or removal anywhere along the rail.

During welding, operators can adjust travel speed, oscillation amplitude and speed, and left and right dwell settings to meet specific welding requirements.

Zipper Welder

Bug-O BUG-5880 track welding carriage

The Bug-O Zipper Welder is designed for welding vertical seams on field storage tanks. The system is composed of two standard components: a box rail assembly with carriage and the Modular Drive tractor.

The box rail assembly with carriage hangs over the top lip of the course section. It can be rolled into position and is held there by powerful on/off magnets. There are box rails available for 8′ seams and 10′ seams.

The Zipper Welder utilizes the Modular Drive tractor and offers systems set up with a pendulum or linear weaver. There is also an optional Automatic Torch Height Control System available for each unit.

Applications for Mechanized Track Welding

Different welding projects require different travel paths, positioning capabilities, and levels of control. Our track welding systems support a range of industrial applications, helping operators select equipment that matches the workpiece and welding process.

Straight-Line Welding and Fabrication

For long, straight welds, controlled carriage travel helps maintain consistent movement along the joint. Our DC-IV and Modular Drive System provide options for applications requiring guided linear travel, with available configurations depending on the welding setup.

Pipe Welding

Pipe fabrication often requires coordinated travel, torch positioning, and control of welding parameters. Our Piper-Plus system is designed for mechanized pipe welding, with programmable settings and closed-loop feedback to support repeatable welding procedures.

Storage Tank Welding

Large storage tanks present specific challenges, particularly when joining vertical seams during field construction. Our Zipper Welder is designed for these applications, using a rail-mounted carriage and available weaving configurations to guide the torch along the joint.

Multi-Position and Curved Welding

Some fabrication projects require welding beyond the flat position or along curved surfaces. The Universal Bug-O-Matic supports multiple rail configurations, including ring rail, while the GO-FER IV provides portable, all-position operation.

With the right equipment configuration, mechanized track welding can help operators maintain controlled torch travel across a variety of industrial welding environments.

Choosing a Track Welding Machine

Selecting the right equipment starts with understanding your welding application. Different systems offer distinct travel mechanisms, controls, and mounting options, so the best choice depends on the workpiece and the conditions in which the equipment will operate.

When comparing equipment, consider the following:

  • Weld path: Straight, curved, circumferential, or vertical seams.
  • Welding position: Flat, horizontal, vertical, or overhead.
  • Rail configuration: Track type, mounting, and available space.
  • Control options: Travel speed, oscillation, or programmable settings.
  • Work environment: Shop or field applications requiring portability.

At Bug-O Systems, we can help you compare equipment and find a configuration that meets your welding needs.

Frequently Asked Questions About Track Welding Machines

What are the advantages of using a rail track welding machine for straight-line welding?

A rail-guided system provides controlled torch movement along a defined welding path. This helps operators maintain consistent travel speed, reduce manual torch handling, and improve repeatability during straight-line welding applications.

How do mechanized welding systems improve productivity compared to manual welding?

Mechanized systems control torch travel, reducing the need for continuous manual movement. Depending on the equipment, additional features such as oscillation, height control, and programmable settings can support more consistent welding procedures and improve operational efficiency.

What industries benefit most from rail track welding machines?

Industries such as shipbuilding, tank fabrication, transportation, and metalworking use guided welding equipment for applications requiring controlled torch travel. The appropriate system depends on the weld path, working conditions, and required welding position.

Are these welding systems portable and suitable for field applications?

Certain Bug-O systems are designed for portable or field use. The GO-FER IV offers portable, all-position operation, while the Zipper Welder is specifically designed for vertical seam welding on field storage tanks. Portability and mounting requirements vary by model.

How do track welding machines ensure consistent weld quality and reduce operator fatigue?

Guided travel helps maintain controlled torch movement and reduces the need for continuous manual positioning. Depending on the system, adjustable travel speed, oscillation, and height control can provide additional process consistency. Weld quality also depends on proper setup and welding parameters.

What safety considerations should be kept in mind when using mechanized welding equipment?

Operators should follow the equipment manufacturer’s instructions, verify secure rail mounting, inspect the carriage and attachments, and maintain appropriate welding protection. Safe operation also requires monitoring the equipment and keeping the travel path clear.

What is pipe welding equipment, and how is it used in mechanized welding?

Mechanized pipe welding equipment controls torch movement and, depending on the system, additional welding parameters during pipe fabrication. Our Piper-Plus system provides digitally controlled travel, oscillation, and other programmable settings for pipe welding applications.

Can track-welding machines be adapted to different pipe sizes and diameters?

Certain systems can accommodate different pipe welding configurations through compatible rails, carriages, and accessories. However, pipe diameter compatibility and mounting requirements depend on the selected equipment. Our team can help determine an appropriate setup for your application.

What is a welding carriage?

A welding carriage is a motorized component that carries welding equipment along a track or rail. It provides controlled movement during welding, helping operators maintain consistent travel speed and torch positioning.

What should I consider when choosing a track welding machine?

Consider the weld path, welding position, rail configuration, required controls, and working environment. These factors help determine which drive unit, carriage, and accessories are appropriate for your welding application.

Which Bug-O systems support all-position welding?

The GO-FER IV and Universal Bug-O-Matic are both described as supporting all-position operation. The Universal Bug-O-Matic also offers adjustable oscillation settings and compatibility with multiple rail configurations. Other models should be evaluated according to their specified positioning capabilities.

What information should I provide when asking about equipment?

When contacting our team, describe the material being welded, weld path, welding position, workpiece dimensions, and required controls. Details about your working environment and current welding process can also help us recommend suitable equipment.

Contact Us!

Have questions or need help finding a distributor? Our team is ready to assist with all your mechanized welding system needs.

Call us at (412) 331-1776 or fill out our contact form to connect with a Bug-O Systems representative today.

We’re committed to helping you achieve greater efficiency, accuracy, and safety with every weld.
