Mechanized Circle Welders

Bug-O Systems is a premier manufacturer of circle welding machines to help our customers achieve greater efficiency, safety, and profitability. Our circular welding systems are used in a variety of industries, including ship-building, pressure vessel welding, structural fabrication, and more. Get in touch with our distributors today and access our superior mechanized circle welding machines.

CW-5

The CW-5 Circle Welder is designed for single or multi-pass welding of couplings or nozzles on pipe and vessels utilizing GMAW or FCAW process, with gas shield. The circle welding machine is equipped with its own wire feeder, rotation drive motor, rise and fall cam assembly and welding gun. Horizontal and vertical racking is used to position the torch.

The CW-5 also includes a 30 lb (14 kg) spool holder. Regardless of the direction of rotation, the cable and wires do not get wrapped up or tangled. The CW-5 is supplied with the following cables: 50″ (15.2 m) of gas hose, 50″ (15.2 m) hot lead, 50″ (15.2 m) control cable and all cables from the remote box to the circle welder.

Features

  • GMAW, FCAW process capabilities
  • 1-12″ (25-300 mm) welding diameter
  • .035-1/16″ (.8-1.6 mm) welding wire size
  • Rotation speed .5-6.0 rpm
  • Rise and fall cam 0-5″ (0-125 mm)
  • 300 amps 100% duty cycle
  • Burn back control, horizontal and vertical adjustment gun & cable
  • Made in USA

CW-5AX

The CW-5AX Circle Welder is designed for single pass or multi-pass welding of couplings and nozzles on pipe and vessels. The unit is available for SAW, GMAW, or FCAW processes. The CW-5AX offers all of the same features as the CW-5 as well as a meter kit, torch angle adjuster and flux hopper.

Features

  • GMAW, FCAW process capabilities
  • 1-12″ (25-300 mm) welding diameter
  • .035-3/32″ (.8-2.4 mm) welding wire size
  • Rotation speed .5-6.0 rpm
  • Meter kit, torch angle adjuster, flux hopper, nozzle and cone
  • Rise and fall cam 0-5″ (0-125 mm)
  • 500 amps 100% duty cycle
  • Burn back control, horizontal and vertical adjustment gun & cable
  • Made in USA

CWE-5

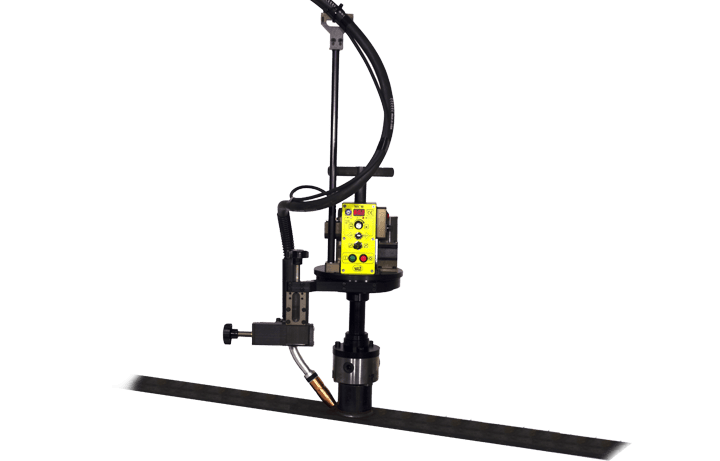

The CWE-5 Circle Welding Machine with Remote Control has a digital readout for rotation speed. It also has controls for: wire feed speed, cold inch/purge, pre-flow and post-flow, burn back and wire feeder forward and reverse. Overlap is also adjustable.

This Circle Welder’s control has both manual and automatic settings. In the manual setting, you can check all your controls and travel speed to make sure the machine is functioning properly. In the automatic setting, with one push of a button, the unit will start the weld process, weld completely around the workpiece, overlap the end of the weld, turn the weld off and return to the start position. It is ready for the next weld.

  • GMAW, FCAW process capabilities
  • 1-12″ (25-300 mm) welding diameter
  • .035-1/16″ (.8-1.6 mm) welding wire size
  • Rotation speed .5-6.0 rpm
  • Rise and fall cam 0-5″ (0-125 mm)
  • 300 amps 100% duty cycle
  • Burn back control, horizontal and vertical adjustment gun & cable
  • Made in USA

CWE-5ax

The CWE-5AX Circle Welder is designed for single pass or multi pass welding of couplings and nozzles on pipe and vessels. The unit is available for SAW, GMAW or FCAW processes. The CWE-5AX Circle Welding Machine offers all the same features as the CW-5 as well as a meter kit, torch angle adjuster and flux hopper.

Features

  • GMAW, FCAW process capabilities
  • 1-12″ (25-300 mm) welding diameter
  • .035-3/32″ (.8-2.4 mm) welding wire size
  • Rotation speed .5-6.0 rpm
  • Rise and fall cam 0-5″ (0-125 mm)
  • 500 amps 100% duty cycle
  • Burn back control, horizontal and vertical adjustment gun & cable
  • Meter kit, torch angle adjuster, flux hopper, nozzle and cone
  • Made in USA

CW-7

The CW-7 Circle Welder is equipped for GMAW, FCAW or SAW welding on vessels and domed heads. The CW-7 has a working range of 6″-24″ (152-610 mm) O.D. nozzles with no cable wrap up for multi-pass welding.

This unit is capable of using welding wire sizes from .035″-3/32″ (.8-2.4 mm). The machine will carry 60 lb. (27 kg) spools of wire.

The CW-7 Circle Welder is complete with wire feeder, gun and cable assembly, flux hopper, wire reel and meter kit and mounts on a 3-jaw chuck.

Features

  • GMAW, FCAW and SAW process capabilities
  • 6-24″ (150-600 mm) welding diameter
  • .035-3/32″ (.8-2.4 mm) welding wire size
  • Rotation speed .2-2.2 rpm
  • Rise and fall cam 0-7″ (0-175 mm)
  • 500 amps 100% duty cycle
  • Burn back control, horizontal and vertical adjustment gun & cable
  • Made in USA

CWE-7

The CWE-7 Circle Welder is equipped for GMAW, FCAW or SAW welding on vessels and domed heads. The CWE-7 has a working range of 6″-24″ (152-610 mm) O.D. nozzles with no cable wrap up for multi-pass welding. This unit is capable of using welding wire sizes from .035″-3/32″ (.8-2.4 mm).

The Circle Welding Machine will carry 60 lb. (27 kg) spools of wire. The unit is complete with wire feeder, gun and cable assembly, flux hopper, wire reel and meter kit and mounts on a 3-jaw chuck.

The CWE-7 has a digital readout for rotation speed. It also has controls for: wire feed speed, cold inch/purge, pre-flow and post-flow, burn back and wire feeder forward and reverse. Overlap is also adjustable. This control has both manual and automatic settings.

Features

  • MIG/MAG, FCAW, SAW process capabilities
  • 6-24″ (150-600 mm) welding diameter
  • .035-3/32″ (.8-2.4 mm) welding wire size
  • Rotation speed .2-2.2 rpm
  • Rise and fall cam 0-7″ (0-175mm)
  • 500 amps 100% duty cycle
  • Burn back control, horizontal and vertical adjustment gun & cable
  • Made in USA

CW-18

The CW-18 Circle Welder is designed for welding of nozzles into vessels or domed heads utilizing the SAW process. The CW-18 mounts on a 3-Jaw Chuck. It is capable of welding diameters of 10″ to 50″ (152-1270 mm) O.D. and using welding wire diameters 3/32- 5/32″ (2.4-4.0 mm). The wire feed control box provides: wire speed (amperage) control, voltage control, wire burn back, weld contact, cold wire switch, weld start parameter adjustment and weld crater parameter adjustment.

Features

  • SAW process capability
  • 10-50″ (254-1270 mm) welding diameter
  • Solid wire size 3/32-5/32″ (2.4-4.0 mm)
  • Rotation speed .2-2.2 rpm
  • Rise and fall cam 0-7″ (0-175 mm)
  • 1200 amps 100% duty cycle
  • Burn back control, horizontal and vertical adjustment gun & cable
  • Made in USA
