PCC-3

Pipe Coupon Cutting Machine

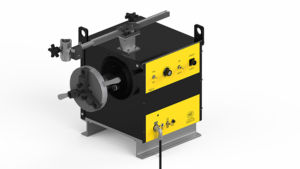

The PCC-3 Pipe Coupon Cutting Machine is used for cutting pipe to a desired length or for beveling the edge of a pipe for weld preparation and is designed to be fixed to a worktable. It is bolted to the table through mounting holes located in the legs of the machine.

The PCC-3 features a self-centering speed chuck capable of gripping 0-8″ (0-3.1 cm) O.D. pipe and 3-11″ (1.2-4.3 cm) I.D. pipe. A racking group supports your plasma or oxy-fuel torch which can be set up for square or beveled cuts on pipe sections up to 12″ (305 mm) in length. The variable speed control on the PCC-3 can be adjusted from 0-4.5 RPM. The standard set up is for plasma and includes a rotary ground. A quick action manifold and hose assembly are available to purchase to convert the machine to oxy-fuel. The PCC-3 is a dual voltage model for both 120/240 VAC 50/60 Hz.

The PCC-3 is ideal for cutting welding coupons. Welding coupons are critical in welding schools and union halls to teach the technical skills needed for welding and cutting. With many processes being taught, SMAW, GMAW/MIG, FCAW, and GTAW, students benefit from having a coupon cutter on site. Developing marketable welding skills for students at these institutions through quality training is key.

Features:

  • Available for oxy-fuel or plasma cutting
  • Variable speed control from 0-4.5 RPM
  • Able to grip 0-8″ O.D. and 3-11″ I.D. pipe
  • Integrated arc on-off switch
  • Dual Voltage (120/240 VAC 50/60 Hz)
  • Digital Speed Control
  • Capable of cuts up to 12″ (305 mm)
  • The standard model includes a rotary ground for plasma and a quick action manifold and hose assembly can be purchased for oxy-fuel
